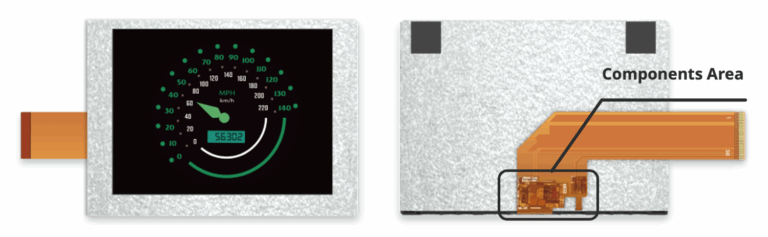

We are excited to introduce our latest addition to the P-Series, the 5.7″ QVGA Entry-class display: P0567VQF1ME00. This display is designed for industrial equipment and HMI applications, offering a cost-effective blend of performance and durability.

Product Features

This professional display features QVGA resolution, SFT ultra-wide viewing angle technology, a 24-bit RGB interface, 500-nits luminance, and an anti-glare surface treatment for the sharpest image quality. Wide operating and storage temperature ranges, combined with a long-life LED backlight, make this Entry-class P-Series display ideal for cost-effective light-industrial applications. This 5.7″ QVGA module is currently in mass production. Samples are available to qualified customers.

P-Series Standard Display Module Solutions

Our P-Series industrial displays are designed for demanding applications, offering superior performance.

  • The Advanced line features high-brightness and a wide temperature range for high-performance needs.
  • The Basic line provides traditional industrial performance.
  • The Entry products bridge the gap between consumer-grade products and the requirements of light industrial applications.
Product Specs

  • Size (inch) 5.7″
  • Part No. P0567VQF1ME00
  • Class Advanced / Basic / ENTRY
  • Display Mode SFT
  • Resolution (pixel) 320×240 QVGA
  • Interface RGB
  • LCM Outline (W×H×D) (mm) 144.00×104.60×5.10
  • Luminance (nits) 500
  • LED Lifetime (h) 50,000
  • Operating Temp. (°C) -20 to 70
  • LED Driver Not Included
  • Surface Treatment AG
  • Application HMI, Industrial
